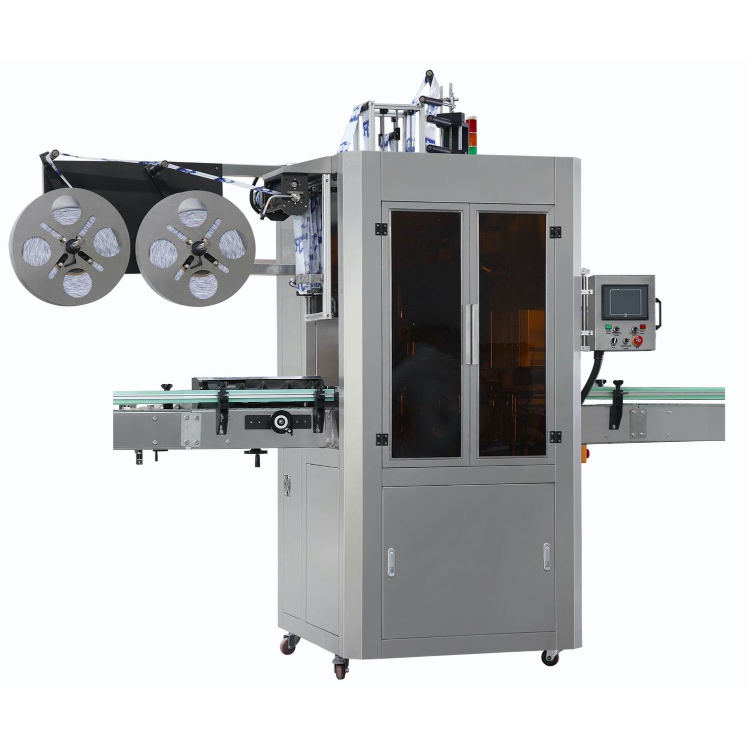

Sleeve applicator with thermal shrinking tunnel
- PRODUCT DESCRIPTION
- VIDEO
- INQUIRY US
Specification:
| Model | TB-S350 |
| Speed | <21000BPH |
| Diameter of bottle |
φ28mm-φ125mm |
| Height of bottle | 30mm-280mm |
| Label Material | PVC,PET,OPS |
| Applicable label length | 30mm-250mm |
| Applicable label thickness | 0.027mm-0.13mm |
| Transparent label length | ≥5mm |
| Inner diameter of paper tube | ≥4" |
| Outside diameter of paper tube | ≤500mm |
| Voltage | 380V,50/60Hz,3PH |
| Power | 2KW |
| Machine size | 2300mmx550mmx1500mm |
| Weight | 1200KG |
Product Features
1.The sleeve labeling system is ideal for high-speed beverage, dairy and household product packaging lines.
2.It applies both full-sleeve shrink labels and tamper-evident sleeves at rates up to 150 bottles per minute.
3.It suitable for the bottle comes with PVC,PET and OPS material labels.
4.Whole machine with high quality SUS304 material ,waterproof.
5.All of our solutions are customized with the customer’s product and label size.
6. In order to make sure production performance, two kinds of shrinking tunnel for your option: hot air shrink tunnel and steam shrinking tunnel.
7. it can sleeve for full bottle body, partial body, cap seal, etc.
Machine details：
