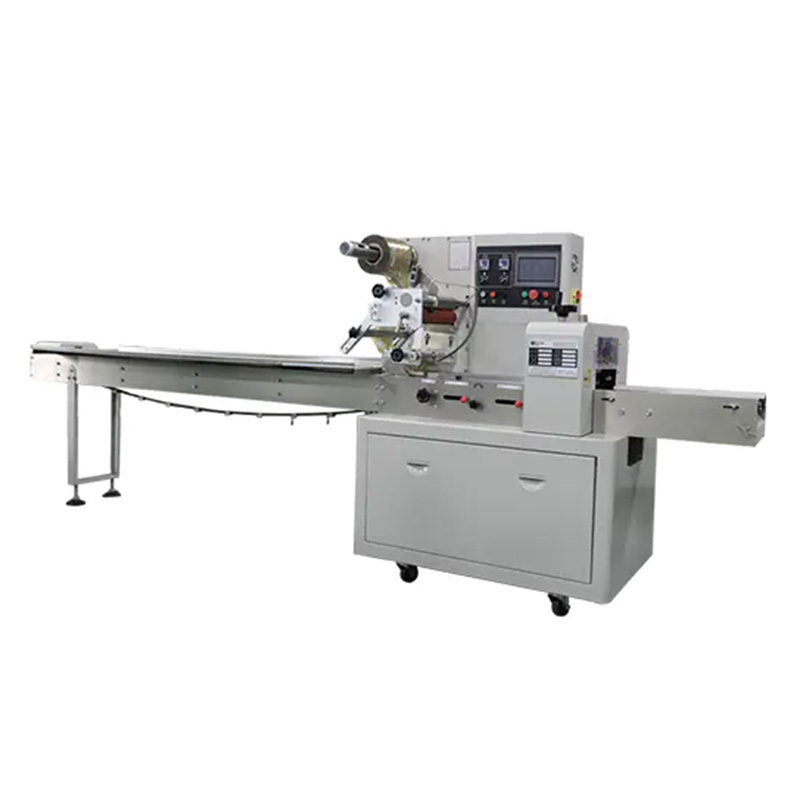

Upper Film Horizontal Packing Machine
Machine Specification:
| Model | CSH-250D | CSH-320D | CSH-350D |
| Packing Speed | 40-230 bag/min | 40-230 bag/min | 40-230 bag/min |
| Film Width | Max. 250mm | Max. 320mm | Max. 350mm |
| Bag Length | 60-190mm or 120-280mm | 60-190mm or 120-280mm | 60-190mm or 120-280mm |
| Bag Width | 30-110mm | 50-160mm | 50-160mm |
| Product Height | Max. 55mm | Max. 55mm | Max. 55mm |
| Film Roll Diameter | Max. 320mm | Max. 320mm | Max. 320mm |
| Machine Weight | 500kg | 550kg | 600kg |
| Machine Size(L*W*H) | 3770×670×1450mm | 3770×720×1450mm | 4020×745×1450mm |
| Power Supply | 220V 50/60Hz 2.4KW | 220V 50/60Hz 2.6KW | 220V 50/60Hz 2.6KW |
Model
CSH-400D
CSH-450D
CSH-600D
Packing Speed
40-180 bag/min
30-150 bag/min
20-80 bag/min
Film Width
Max. 400mm
Max. 450mm
Max. 600mm
Bag Length
130-320mm
130-450mm
120-450mm
Bag Width
30-150mm
50-180mm
50-200mm
Product Height
Max. 65mm
Max.75mm
Max. 80mm
Film Roll
Diameter
Max. 320mm
Max. 320mm
Max. 320mm
Machine Weight
650kg
700kg
750kg
Machine
Size(L*W*H)
4020×800×1450mm
4020×800×1450mm
4380×970×1500mm
Power Supply
220V 50/60Hz 2.8KW
220V
50/60Hz 2.8KW
220V
50/60Hz 3.6KW
Machine Features:
1.Dual motors, Panasonic dual frequency conversion, Panasonic PLC control, instant bag length setting and cutting, no need for idle running adjustment, one-step operation, saving time and film.
2.Button-style human-machine interface, with full Chinese/English menus and convenient parameter setting.
3.Self-diagnostic function for easy identification of faults.
4.High-sensitivity photoelectric eye color mark tracking for more accurate sealing and cutting position.
5.Temperature-independent PID control, better suited for various materials wrapping.
6.Positioning shutdown function, no sticking, no film waste.
7.Simple transmission system, reliable operation, and easier maintenance.
8.All controls are implemented by software, making it easy to adjust functions and upgrade technology, and never fall behind.
Sample pictures:
