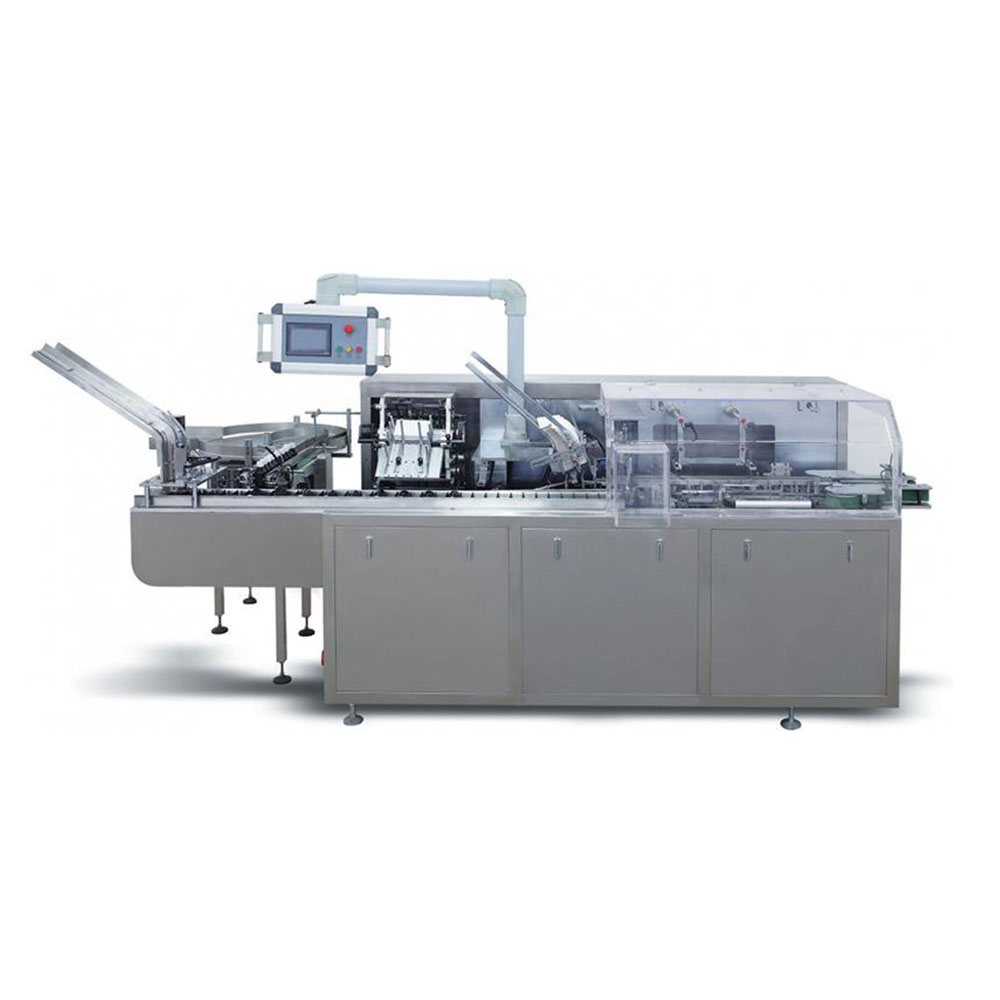

High Speed Automatic Cartoning Machine
Technical Paramter:
| Model | CSZ-280 |
| Packing speed | 50-280cartons/min |
| Size of package | L(100-250)mm×W(60-130)mm×H(20-70)mm |
| Cardboard material | 250-450g/㎡ |
| Instruction material | 60-70g/㎡ |
| Instruction size (Unfold) | (80-150) x (90-170)mm |
| Instruction size (Fold) | (1-4) Fold |
| Motor power | 1.5kw |
| Power supply | 380V 50HZ |
| Minimum Air pressure | 0.5-0.8 Mpa |
| Air consumption | 120-160L/min |
| Maximum noise | 80dB |
| Overall dimension | L5000mm×W1700mm×H1900mm |
| Weight | 2000Kg |
Electric Configuration:
| PLC | CPIE-N30DT-D/Omron |
| PLC Extened Module | CPIE-C1F11/Omron |
| Touch Screen | NB7W-TW00B/Omron |
| Sensor | E3Z-D61/Sick |
| Frequency | 3G3JZ-A4015/Omron |
| Relay | MY2 NJ24V/Omron |
| Button | XB2/Schneider |
| Emergency Stop | ZB2 BC4D/Schneider |
| Electromagnetic Valve | 4V210-08/Airtac |
| Pressure Regulator Valve | BFR-2000/Airtac |
| Proximity Switch | TL-Q5MC1/Omron |
| AC contactor | LC1E3210M5N/Schneider |
| Air switch | 3P32A 1P6A/Schneider |
| Vaccum Sounder | ABM20-C/SMC |
Machine introduction:
The high-speed cartoner is a fully automatic cartoning machine designed for continuous operation at high speeds. With a capacity of 280 cartons per minute, it can pack products 2-3 times faster than ordinary cartoners, making it an incredibly efficient option. Additionally, the machine operates with high stability, ensuring a steady packaging process while minimizing noise and load. Overall, this high-speed cartoning machine is an excellent choice for businesses looking to optimize their packaging processes and improve productivity.
Machine features:
1.The box cartoning machine adopts a suspended structural design.
2.It has an innovative compact design with convenient maintenance access.
3.Easily and clean or replace components.
4.The suspended structure of the whole machine lets waste fall to the collection unit below, making it easy to keep clean.
5.The whole machine is made of stainless steel and features a closed circuit and gas path structure.
6.The driving device is located at the rear and is completely open on the operator side, meets GMP standards.

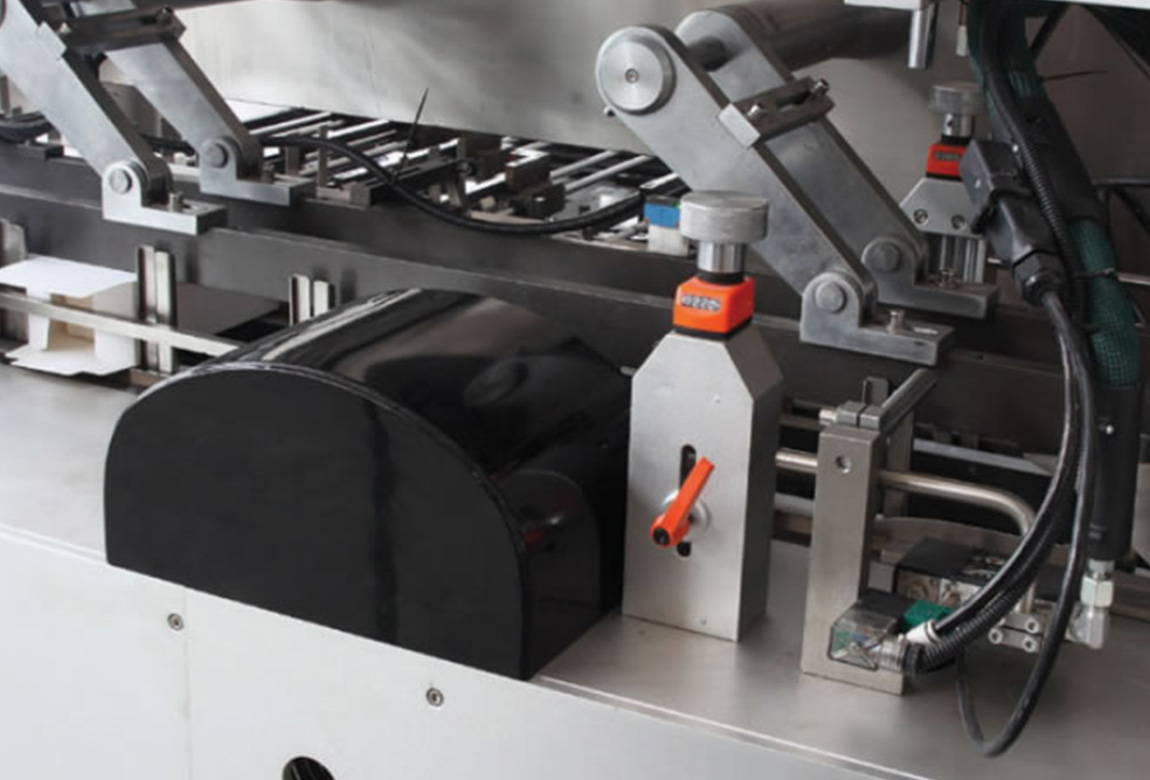

Detailed pictures:
